OG60 KEYBOARD

Name: Buy ✔️ KBDfans OG60 Retro Keyboard Shop 😍
SKU: kbdfans-6941084418187
Availability: InStock

Inspiration

The prototype Cherry G80-3077SAU is one of my favorite mechanical keyboards, and I love the great design. We recreated this 60% layout keyboard kit with reference to the shape of the G80-3077SAU.

Design & Colors

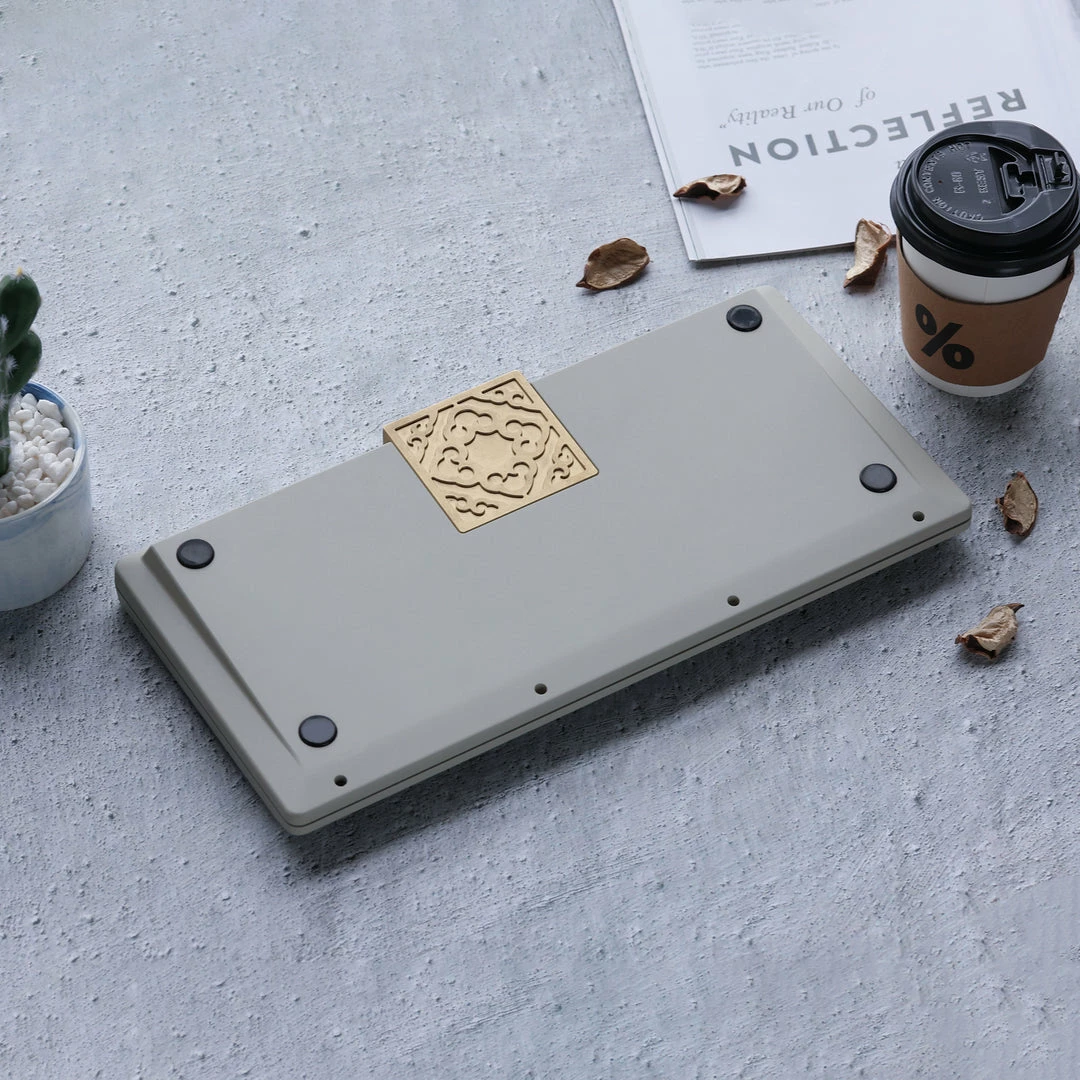

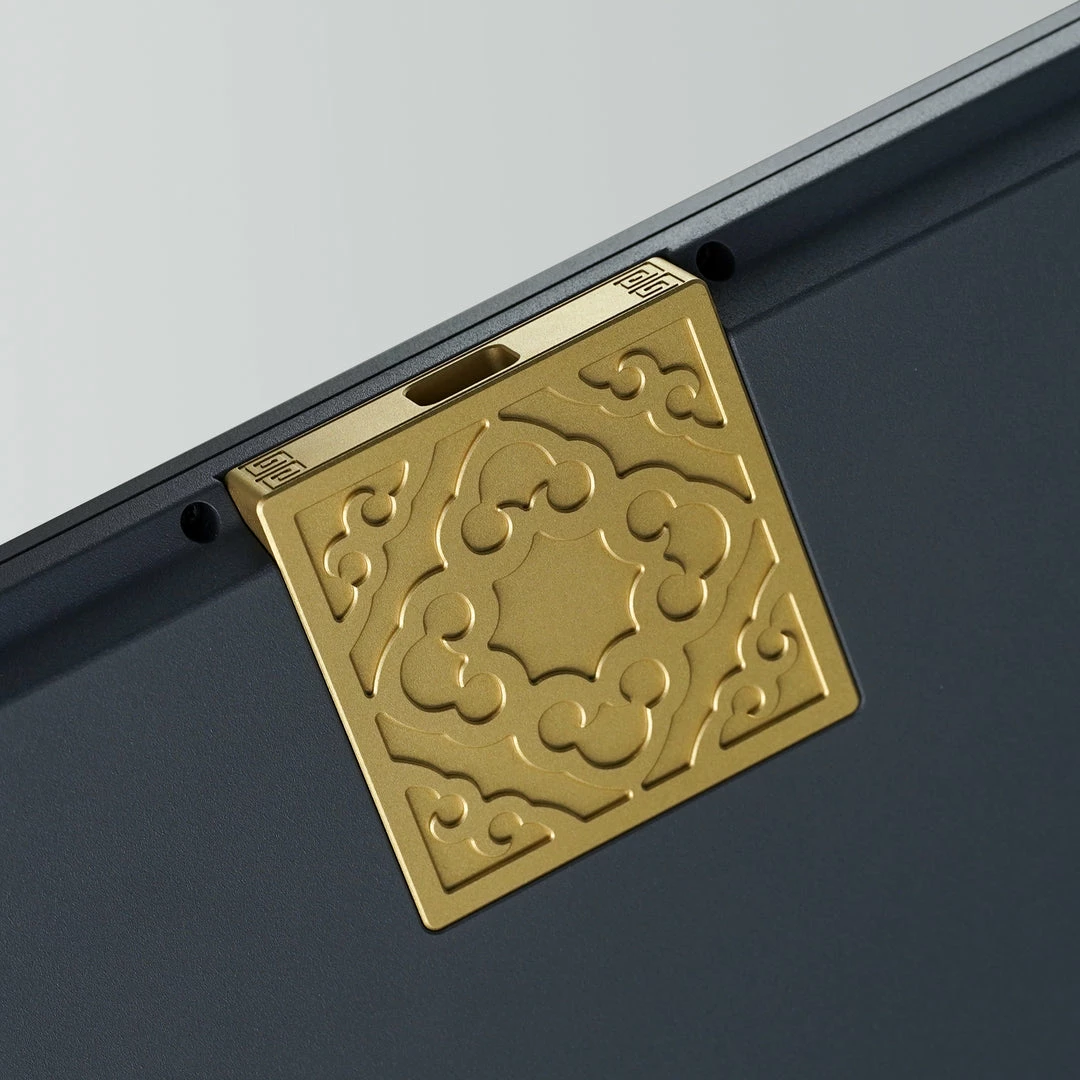

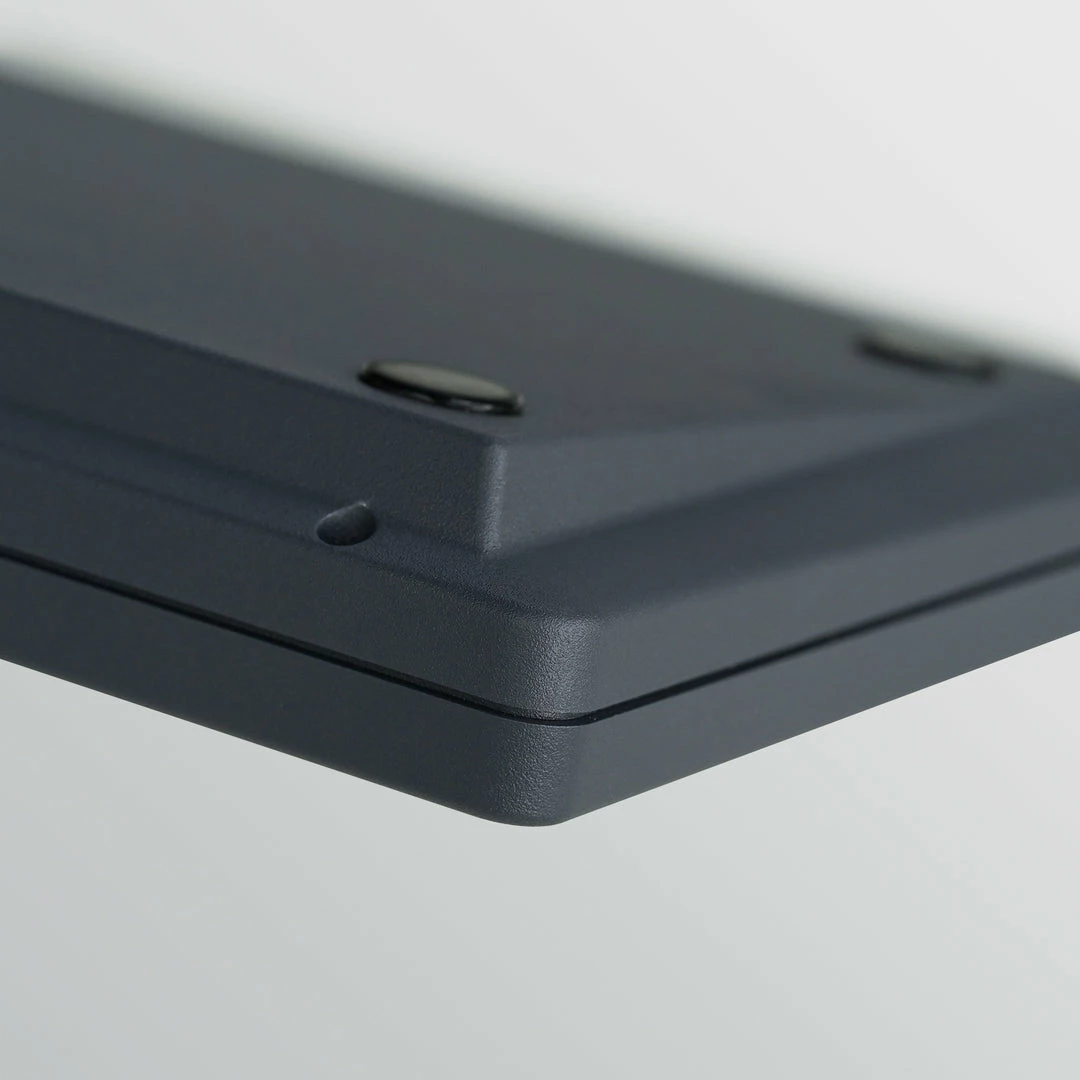

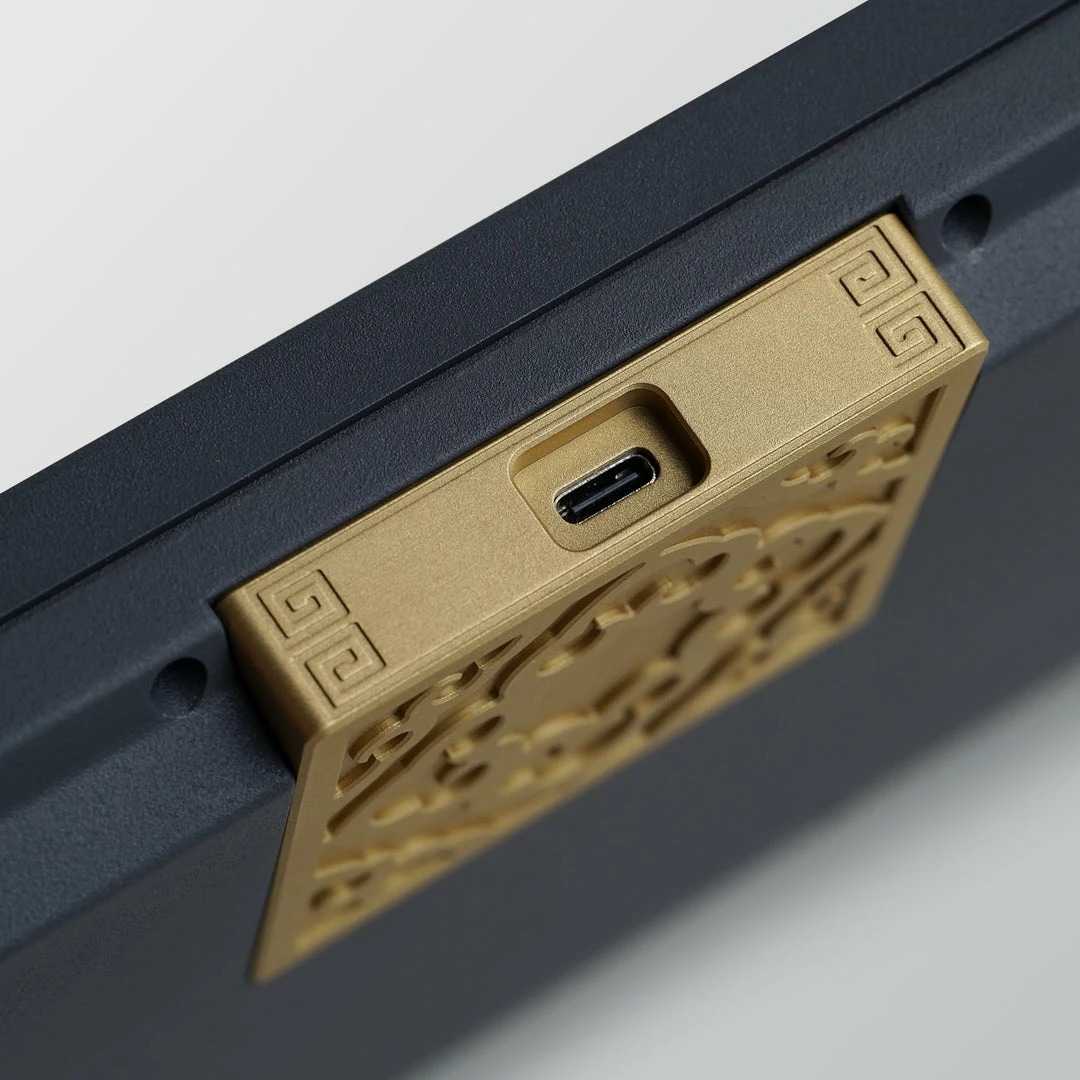

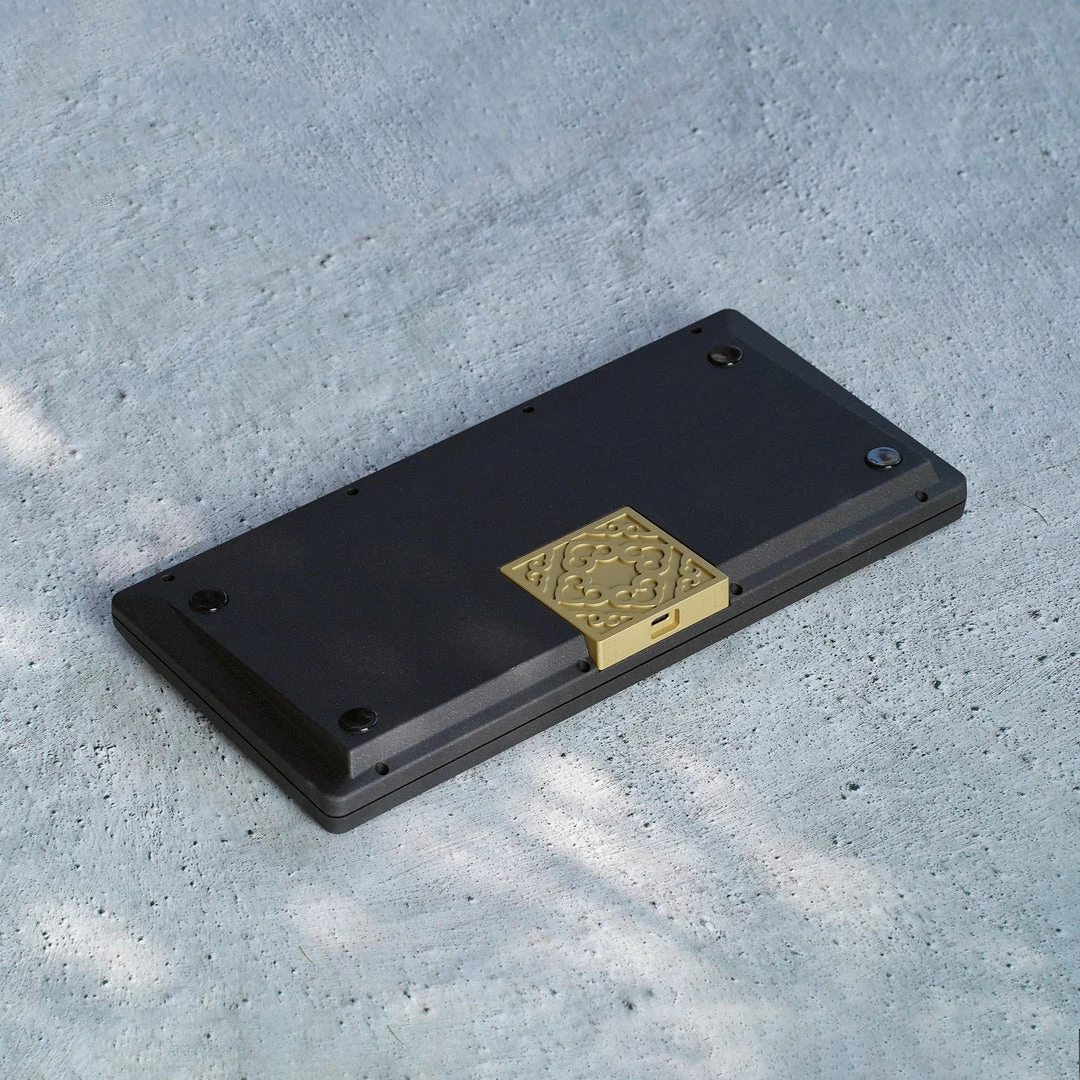

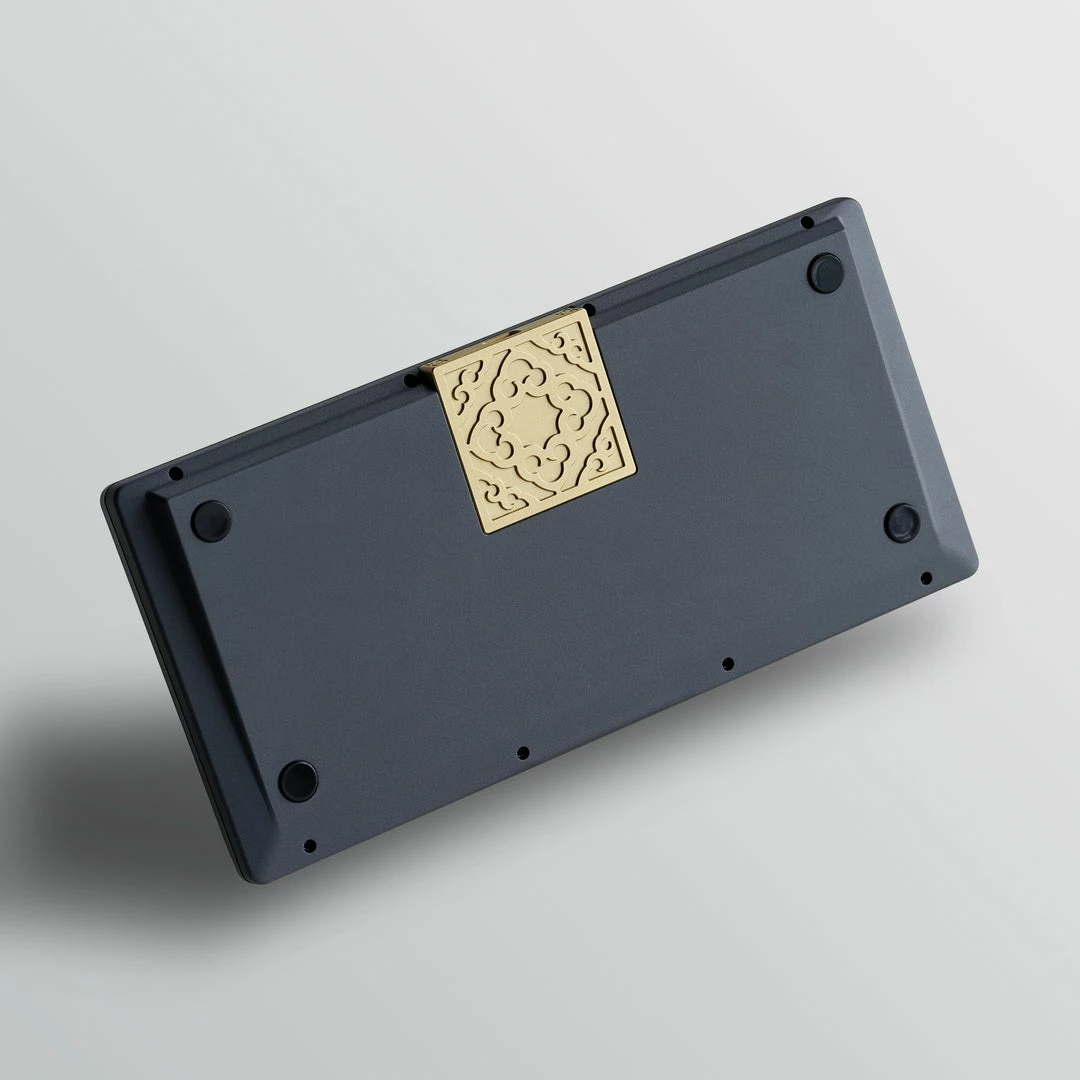

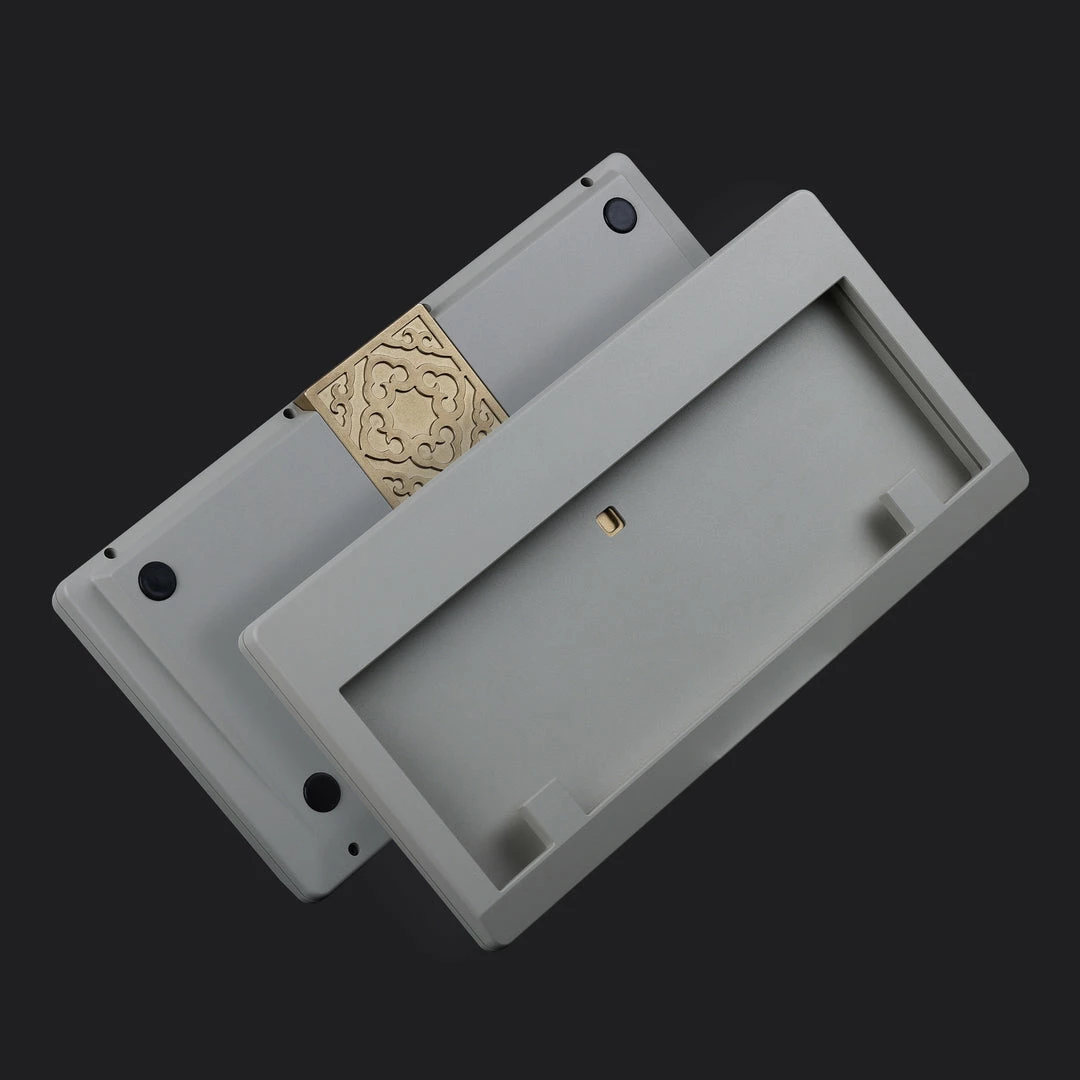

OG60 is a retro design and electrostatic coating process. It uses high-quality aluminum alloy as raw material and is processed by CNC machine. The weight at the bottom is made of brass, and the surface is sandblasted process. Not only can increase the weight of the keyboard but also more beautiful.The pattern engraved on the weight is the pattern on traditional Chinese furniture, the cloud pattern, which symbolizes peace and auspiciousness.

Color

All three colors are blasted coating process

not rendering images

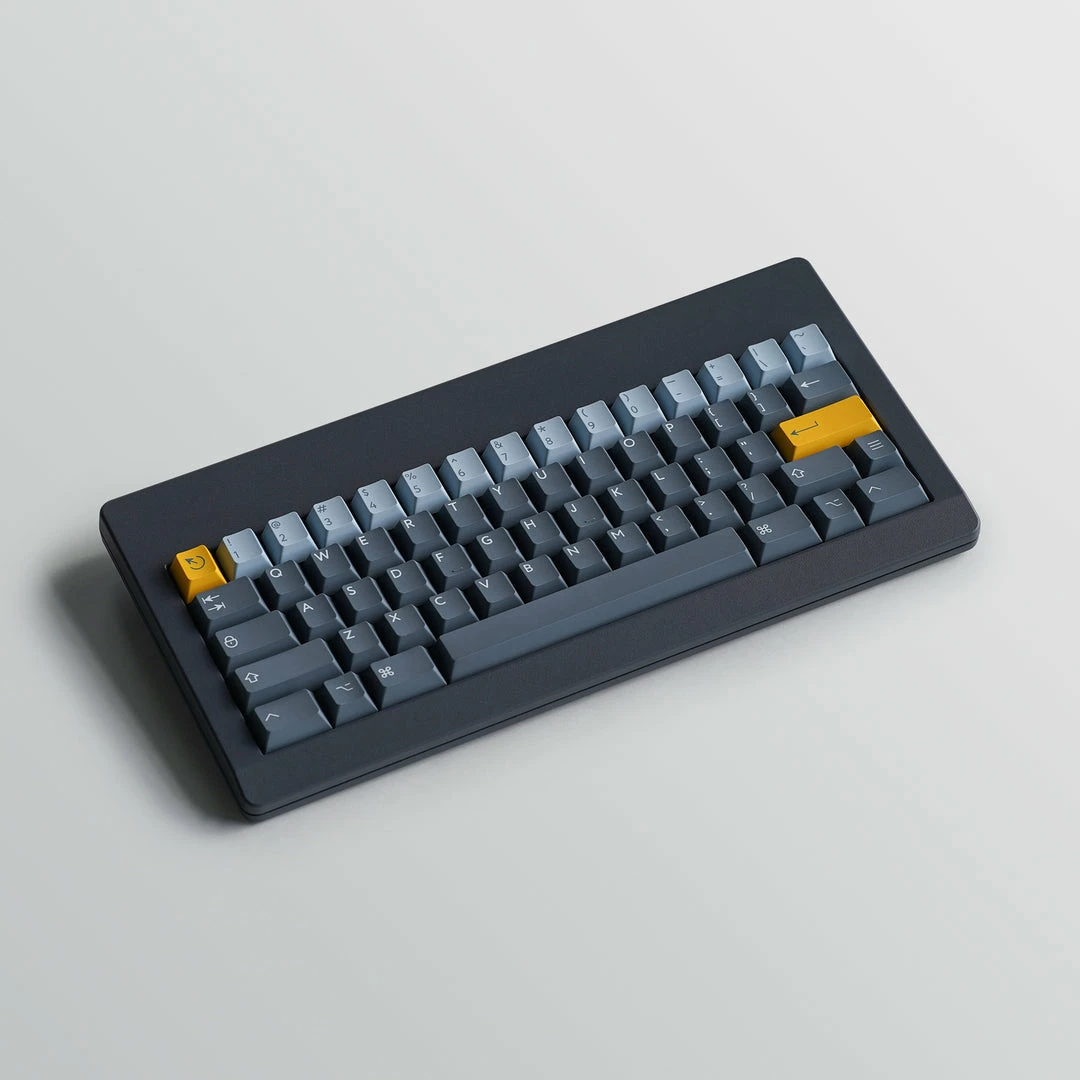

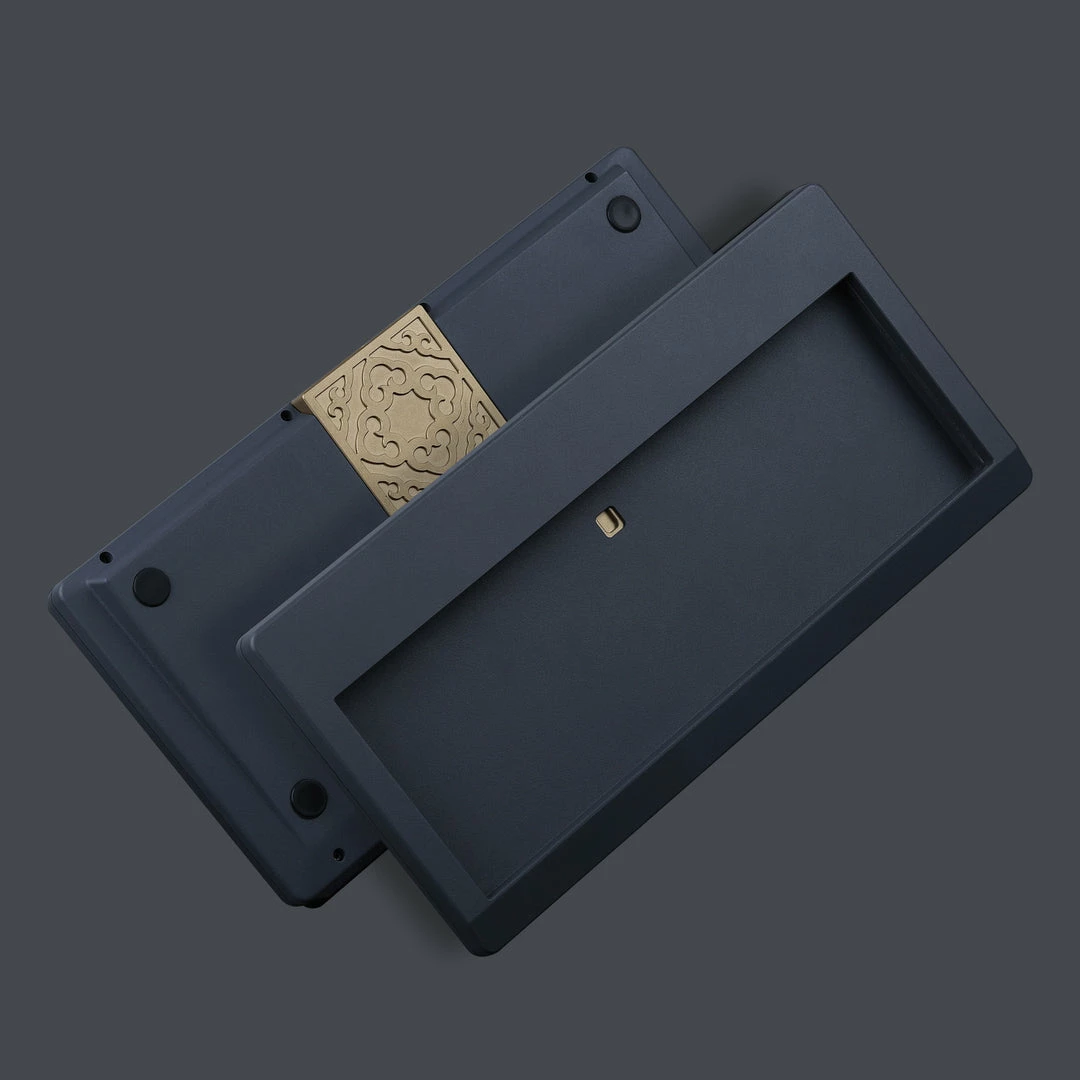

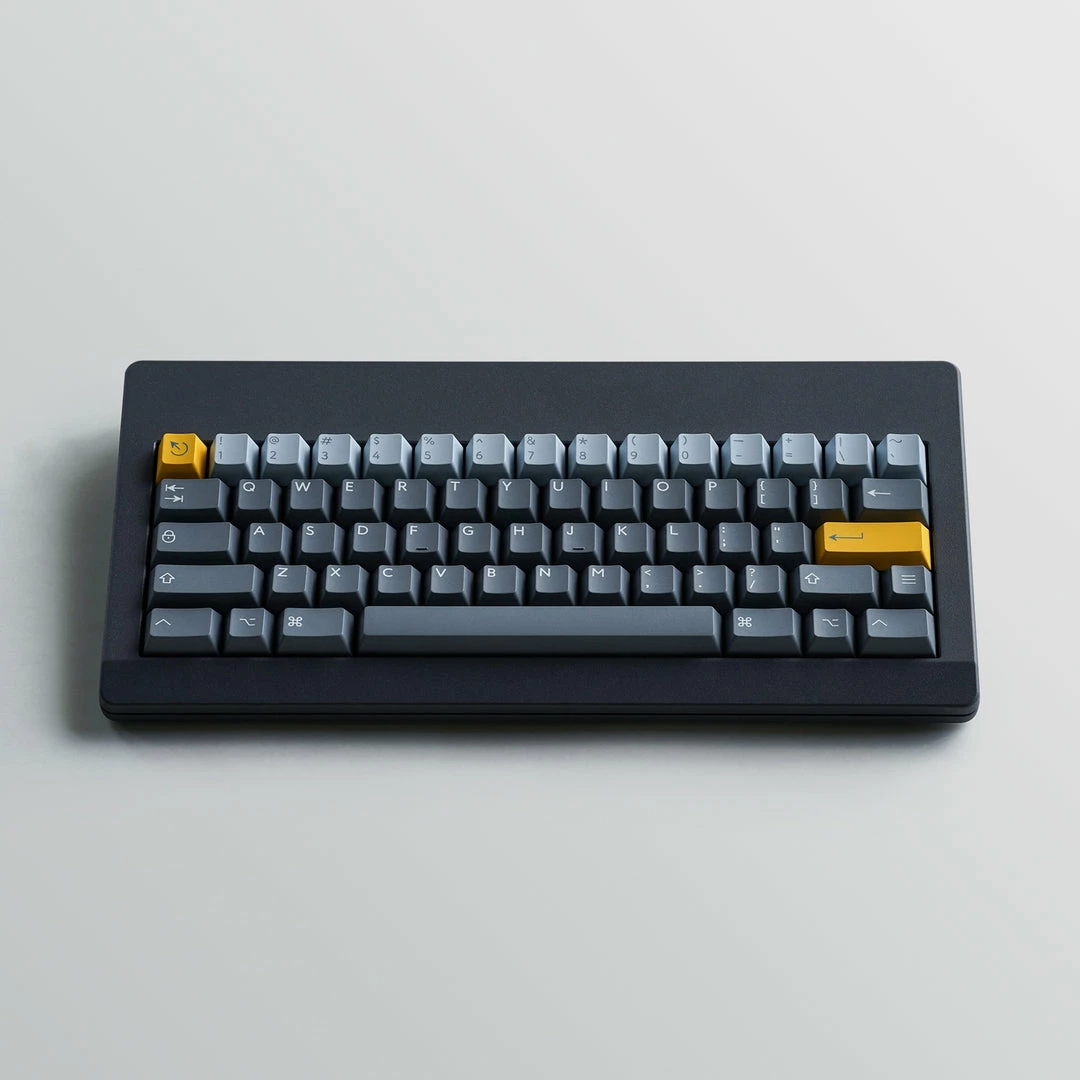

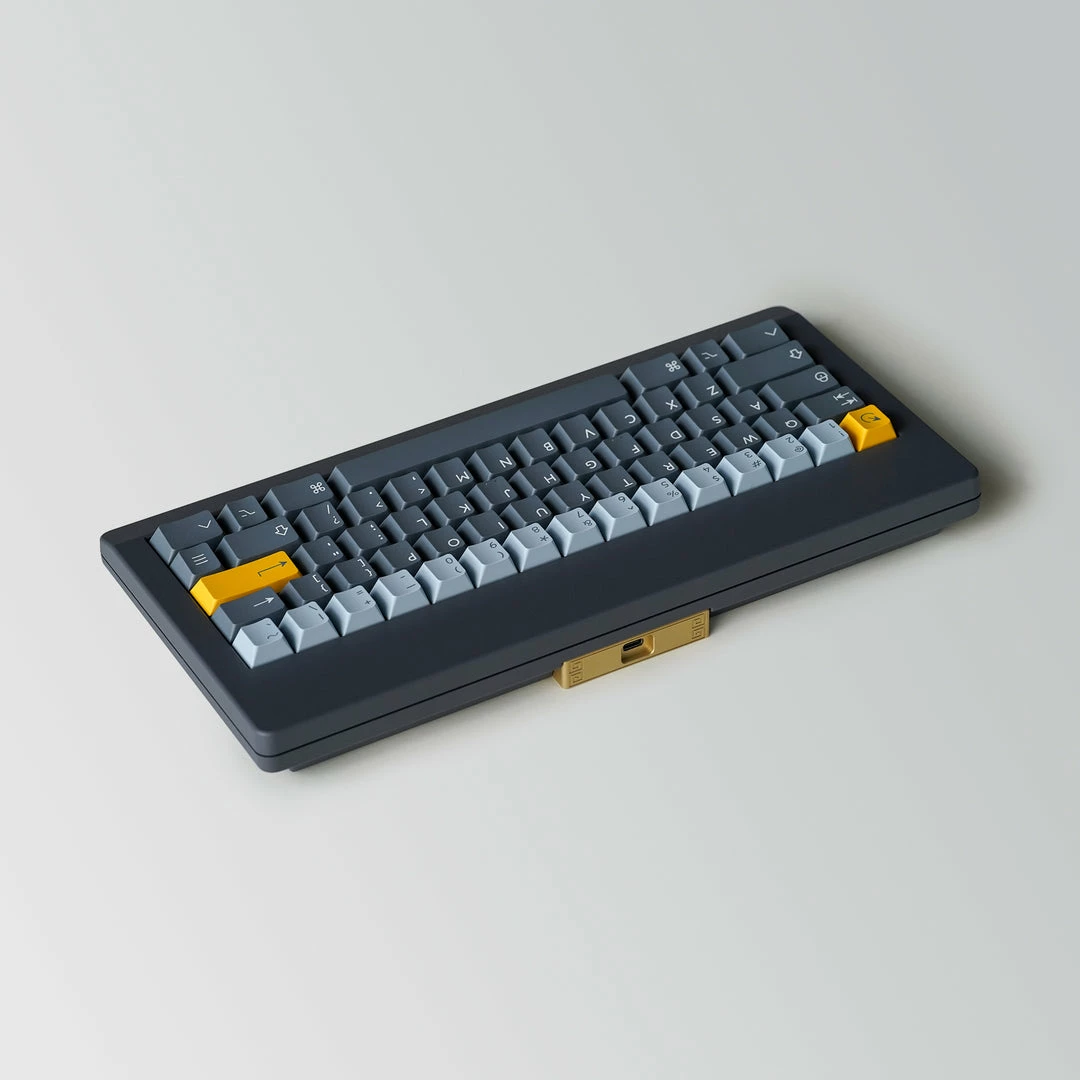

Gray blue

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-004db7fa-3fbe-45d1-9c00-2ce144ce820e’ })

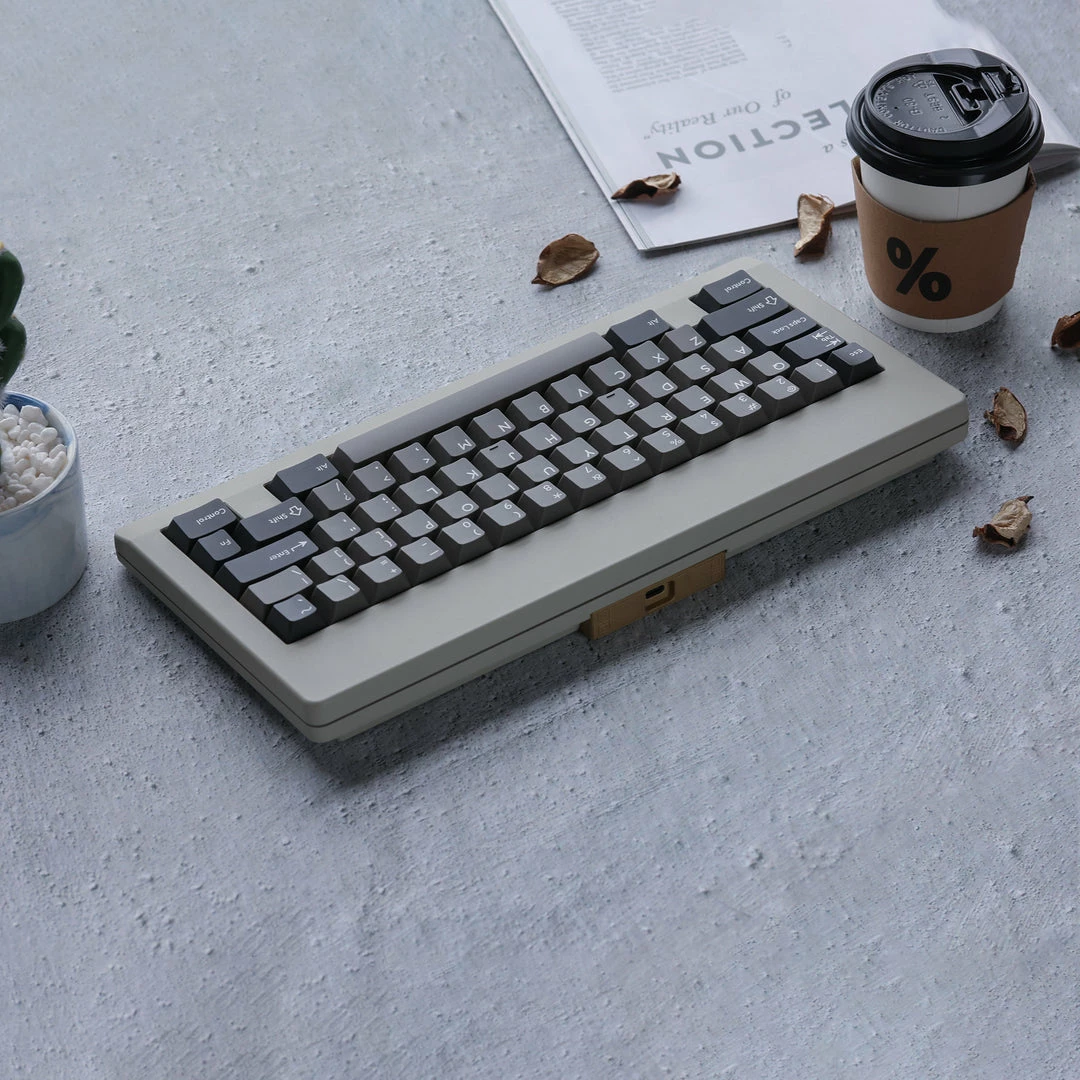

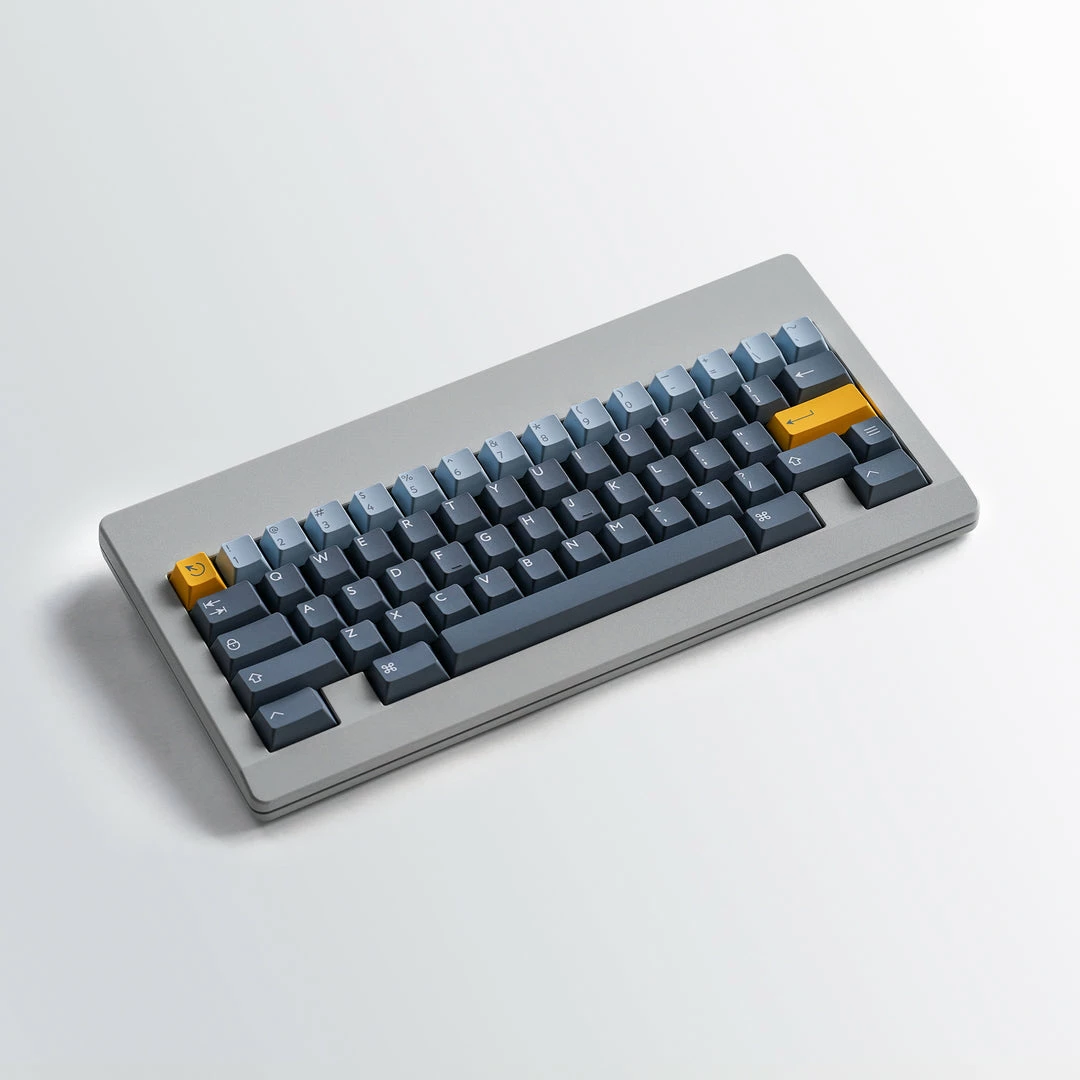

Creamy white

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-61c0d4d8-09b9-4c11-b0cb-67d6dcb7a6a7’ })

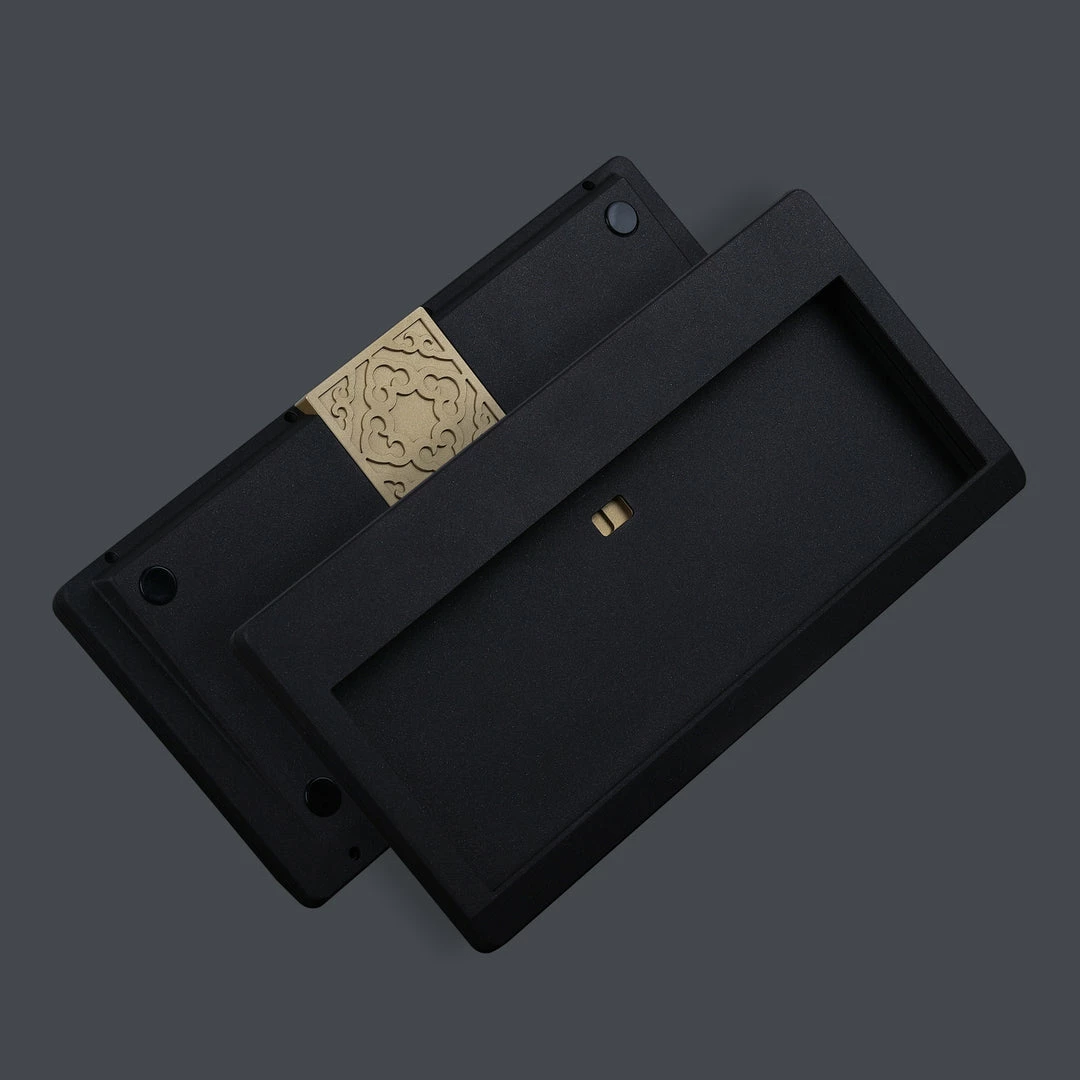

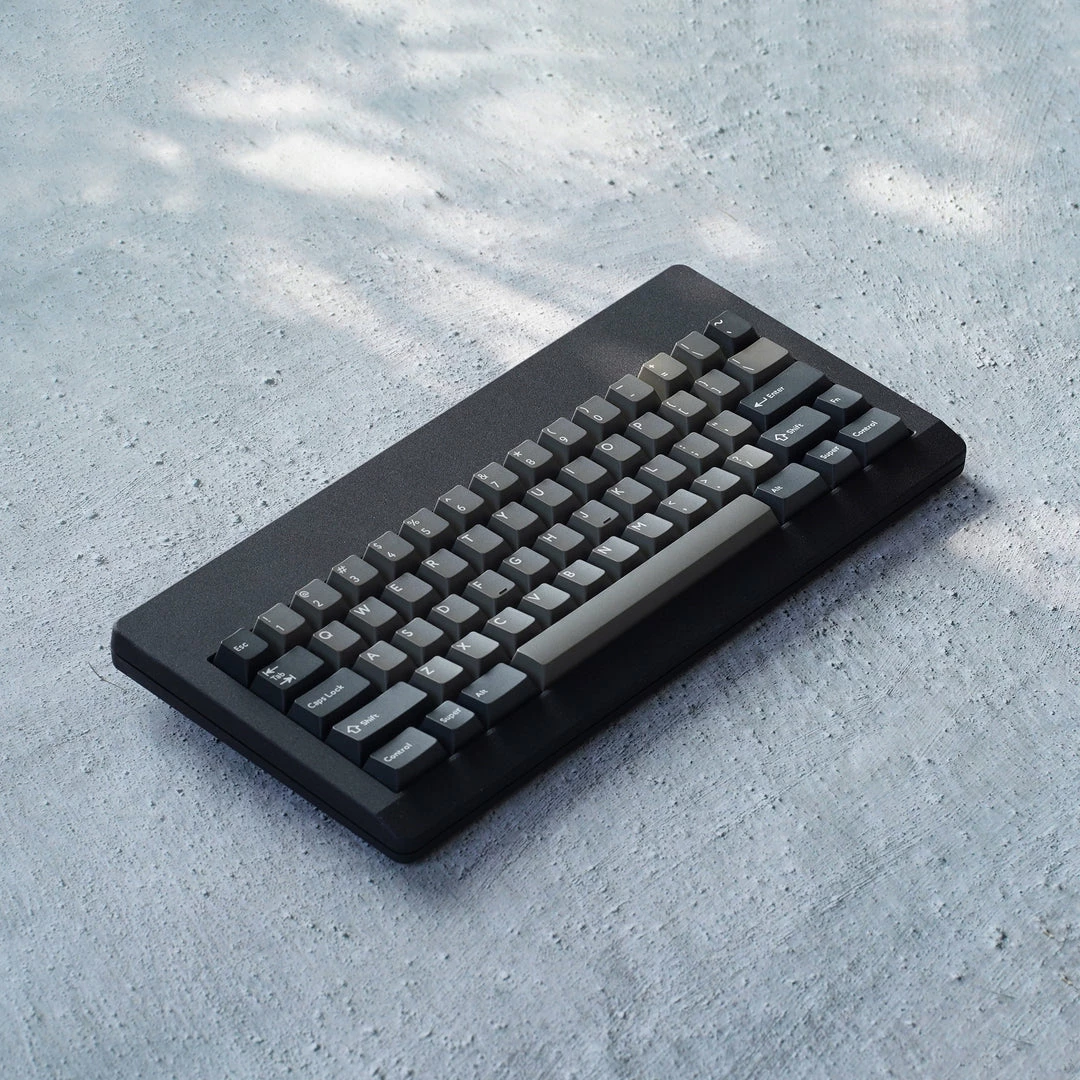

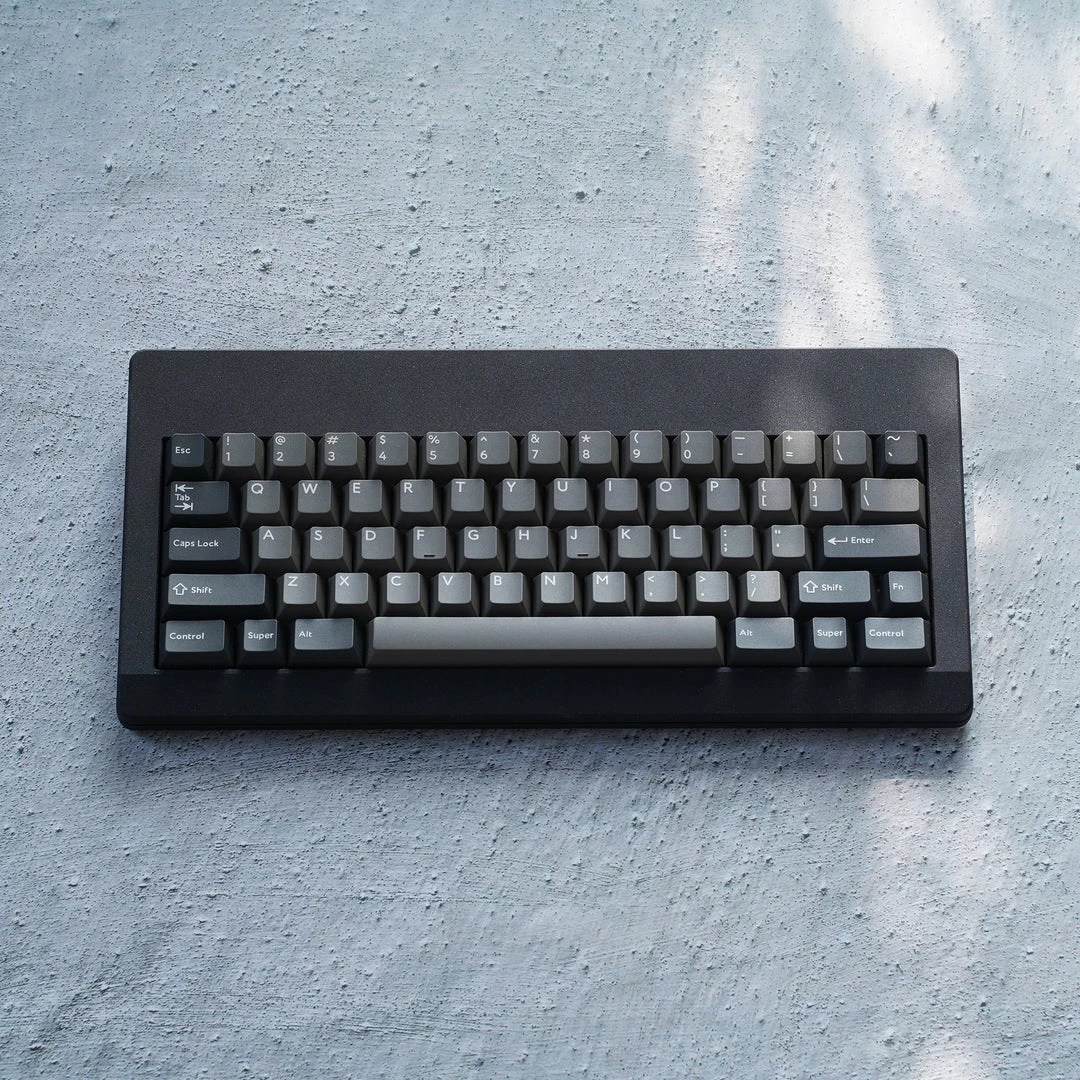

Starry black

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-7319eb50-0e68-413a-9945-98f8d5c4329f’ })

Layout

WKL

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-c17181a4-04f9-4854-827a-4482d603d8dc’ })

WK

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-749f4004-f34b-4db9-aba7-81583f96d311’ })

HHKB

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-ecd40f3f-c3d0-4e06-8dcd-7b2b75902b6a’ })

What’s inside?

Comes with 2 Plate, Fr4 and Polycarbonate materials

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-ddae39cb-9f75-44f5-945a-c3893345c4a6’ })

Dual-mount support

Feel different typing experience by using different fixing methods

TOP MOUNT

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-64f83f59-127d-4e51-b5f8-2b02e9a53d08’ })

GASKET MOUNT

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-7fe19d8e-1576-4adb-a9af-ce72e5285ed8’ })

More photos

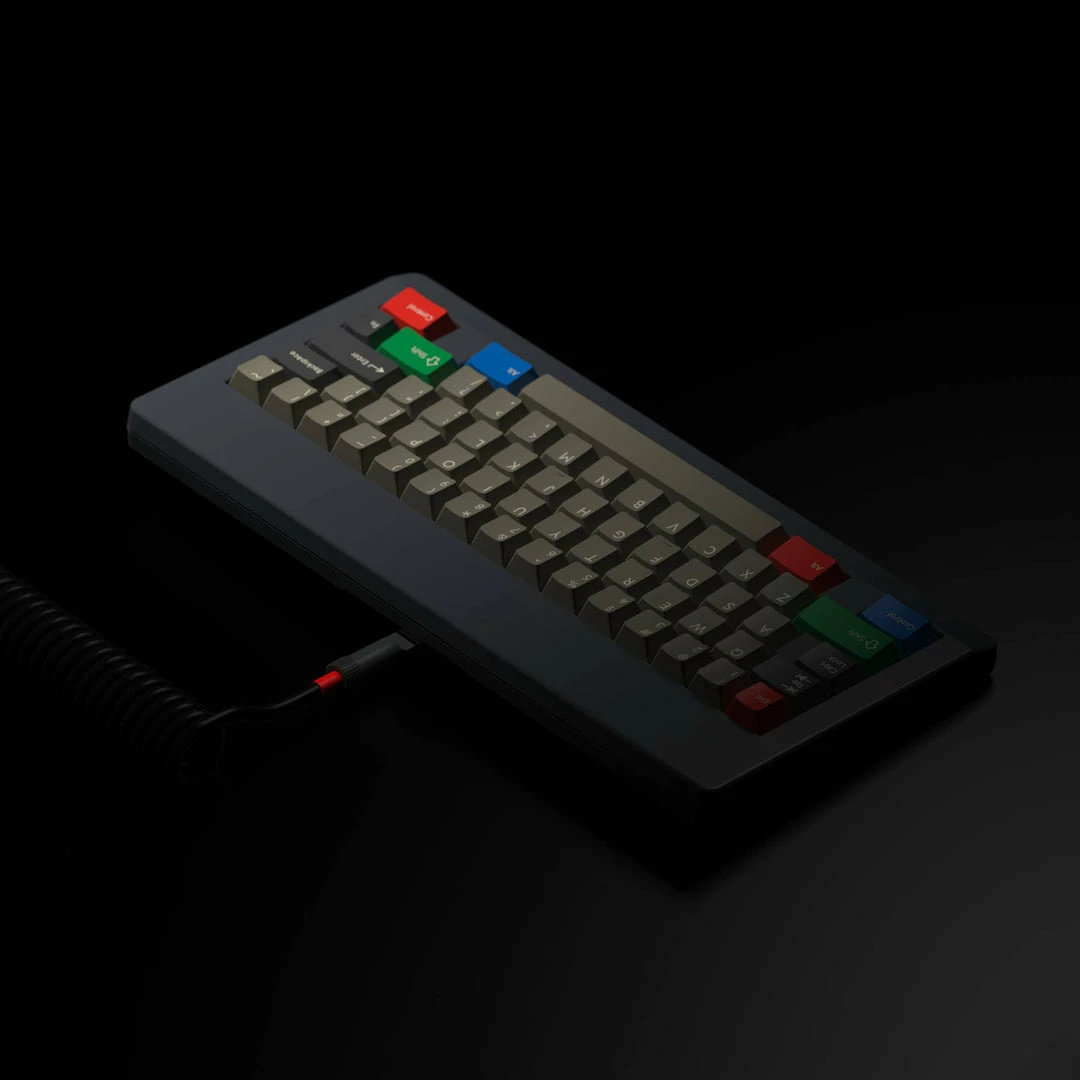

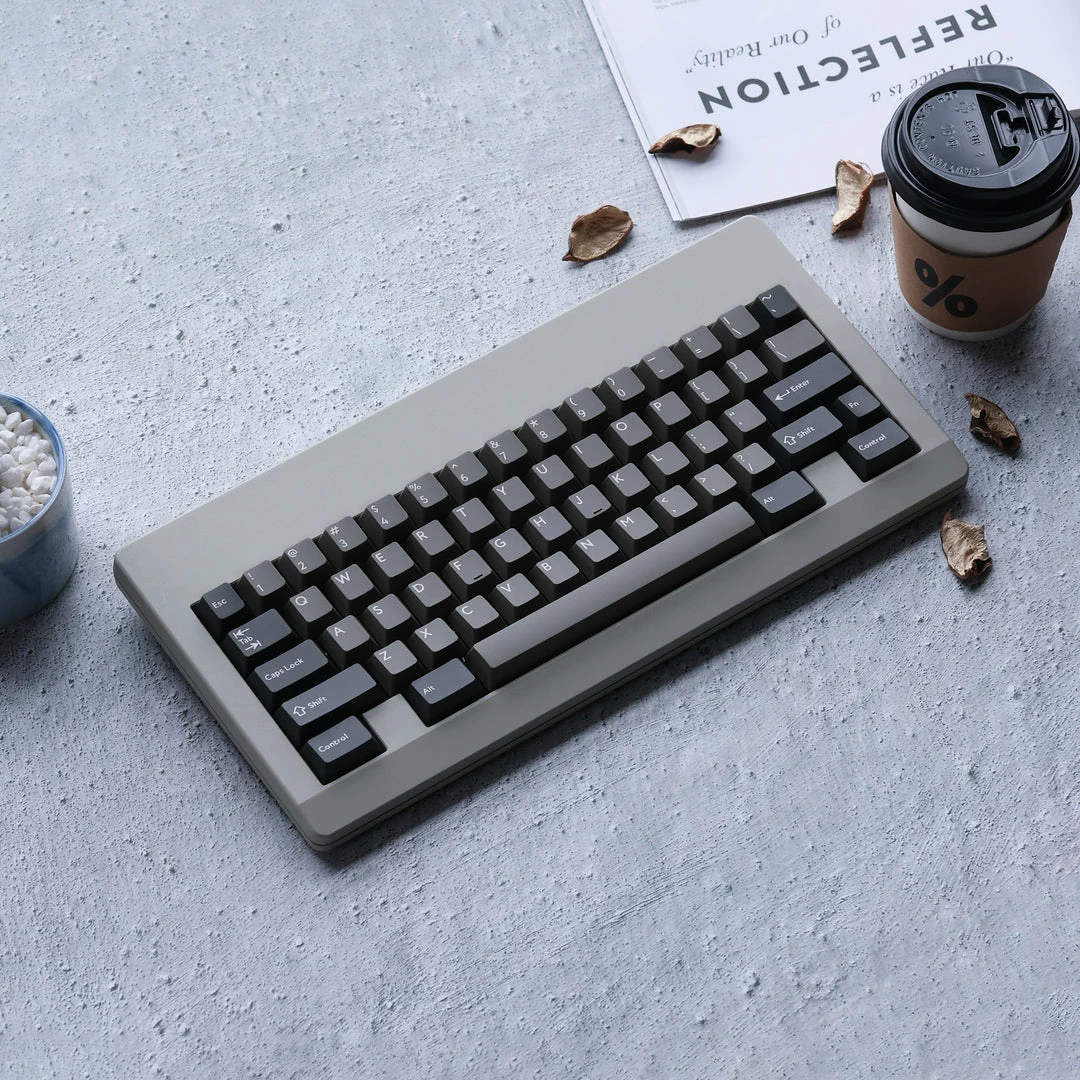

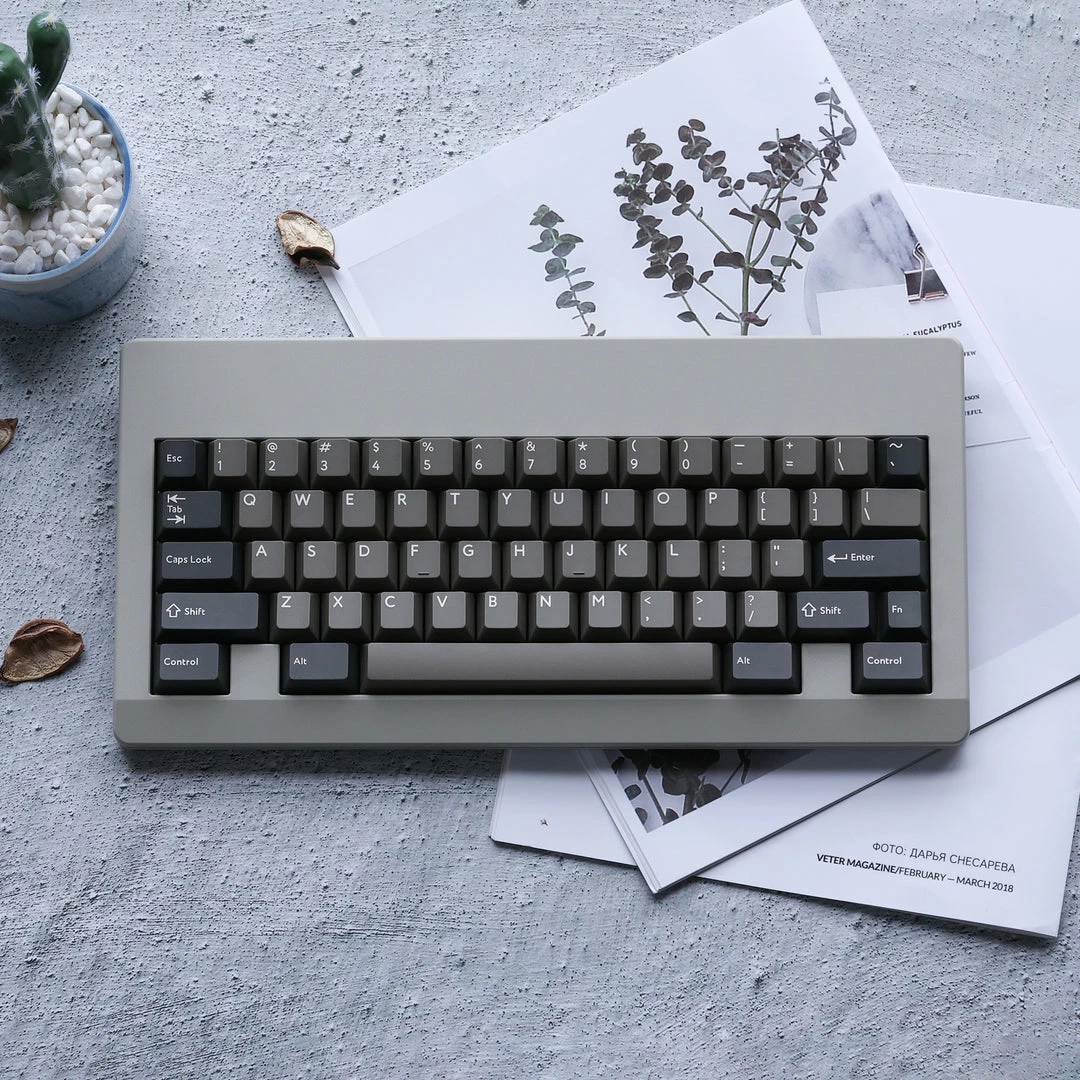

Prototype keyboard shot, not rendering.

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-b59aefa2-7266-4546-ac4a-2cc07e63fbc1’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-00b1a58c-6ff7-430b-b54c-9009ede1a797’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-9b13d280-32f3-4616-82e4-649e75d912e6’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-0cedc6e0-07c6-4671-8d2b-9267b57066ce’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-8909275f-8f70-4928-87d5-04f734d32141’ })

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-ecd68246-fc3a-409f-acfc-43a768da3f52’ })

window.SHOGUN_SLIDERS = window.SHOGUN_SLIDERS || new Array();
window.SHOGUN_SLIDERS.push({
id: ‘#slider-s-cafe9e56-05c4-4a8b-822a-990f92b23b55’,
intervalTime: 2,
autoplay: true,
pauseOnHover: false,
interval: null
})

Detail

Specifications

Structure: Top mount/Gasket mount
Prototype reference: G80-3077SAU, retro design
Programmable: QMK firmware/VIA supports
Plate: Polycarbonate
PCB: Flex cut, 1.2mm thickness
Layout: WKL/WK/HHKB
Weight: Brass, surface sandblasted process
PCB: Hot-swap
Weight: around 1.70 kg (case+weight bar)

Include

Blasted coating aluminum case x1
Flexible cutting and hot swap PCB x1
Plate x2 （Polycarbonate and FR4）
Silicone socks set x1
PCB foam x1
Daughterboard x1
Bottom case foam x1
EVA Switch pads x1
Rubber feet and screws
Stabilizers shims x1
Cherry screw-in stabilizers

Update

The production of the WK case is about to be completed, and the production of the PCB is expected to be completed in early December, 2022. (2022-11-21)
Already in production, pre-orders are expected on Black Friday 2022.

Dimensions

window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-cc320099-e6e6-48e0-971f-c4216326dba4’ })

Plate File

OG60 ANSI Plate.step
OG60 ISO Plate.step

FAQ

How many switches do I need to buy?

At least 65 switches need to be bought.

What is the shipping date?

Estimated shipping date of WK layout: Mid-January, 2023.

Please pay attention to our update page. The estimated delivery time of the pre-sale part of WKL and HHKB will be in Q1 2023.

Which Plate should I use?

Usually FR4 is harder than Polycarbonate. If you like stronger rebound feedback, you can choose Fr4. If you like softer rebound feedback, you can choose Polycarbonate.

Should I buy a 3pin switch or a 5pin switch?

Both are supported, but you need to pay attention, there are 2 switches in the ISO position that require a 3Pin switch. If you’re a 5pin switch, you’ll need to clip your switch pin to mount it.
Please see the picture below：
