Optional Compatible Case/Keycaps
window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-78b95909-aa02-4707-8b02-67ac6ba188e8’ })
window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-1fafe94a-0c5e-40cb-855b-5e8548253a70’ })
window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-67207009-0c66-4584-b67c-458b3546b5b1’ })
KBD67 Lite R4 Progress
- Selling extras in stock (2022-08-22)
- Arranging the shipment from July 30th to mid-August. (2022-07-29)
- The accessories are arriving, ready to be assembled then arrange the shipment according to the colors that have arrived. (2022-07-12)
- We have tried flex cut PCB for KBD67lite R4 during the designing phase. However, after some comparative tests, both sound and typing experience are not better than the original PCBs. As a result, we only changed the colorway for KBD67lite Round 4. (2022-03-29)
- Group Buy Date: May 6th to May 30th, 2022
- Estimated Shipping Date: End of July 2022
Optional Compatible Accessories
- KBD67 Lite R4 ABS Plastic Case: Click
- KBD67 V3 Aluminum Case: Click
- Collection Keycaps for KBD67 Lite ANSI: Click
Assembly Service
- Hot-swap Assembly Service: Click
- Krytox Switch Lube Service: Click
Include
- PCB x1
- Case x1
- Plate x1
- Stabilizers 60 set x1
- Mute silicone x1
- Bottom foam x1
- USB-C cable x1
- KBD67 Lite Carrying case x1
- KBDfans stabilizers foam stickers set x1
- Rubber feet and Screws
SPECS

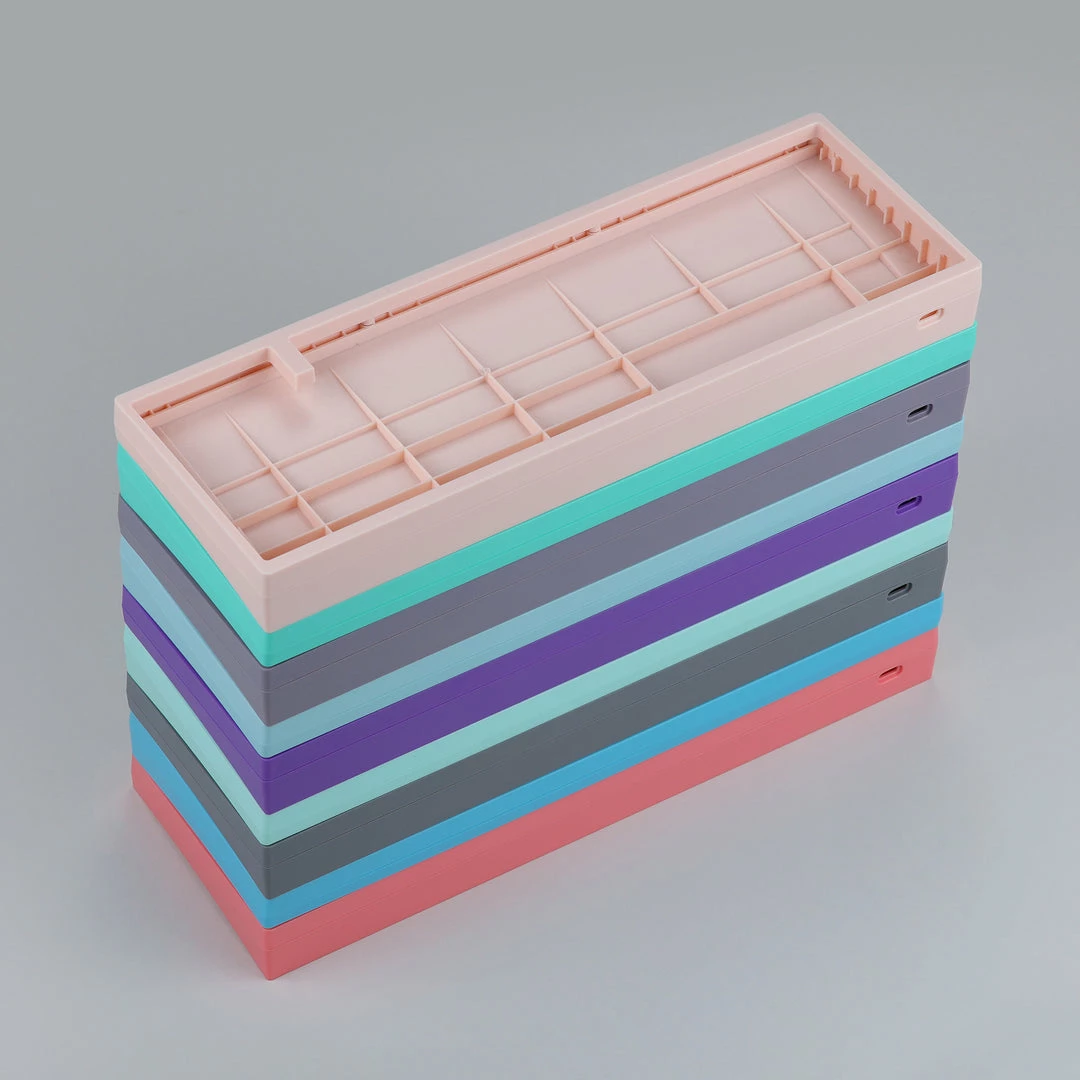

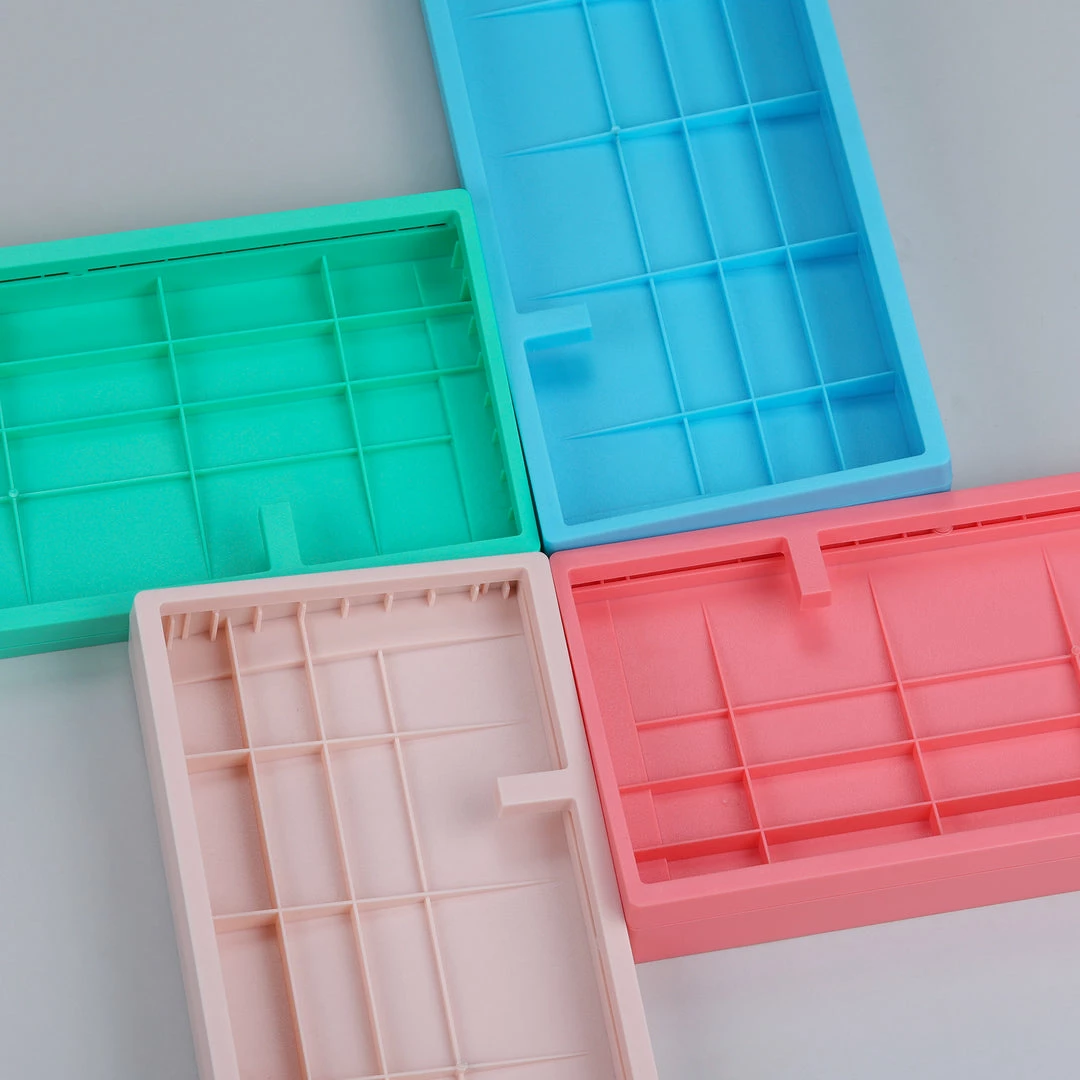

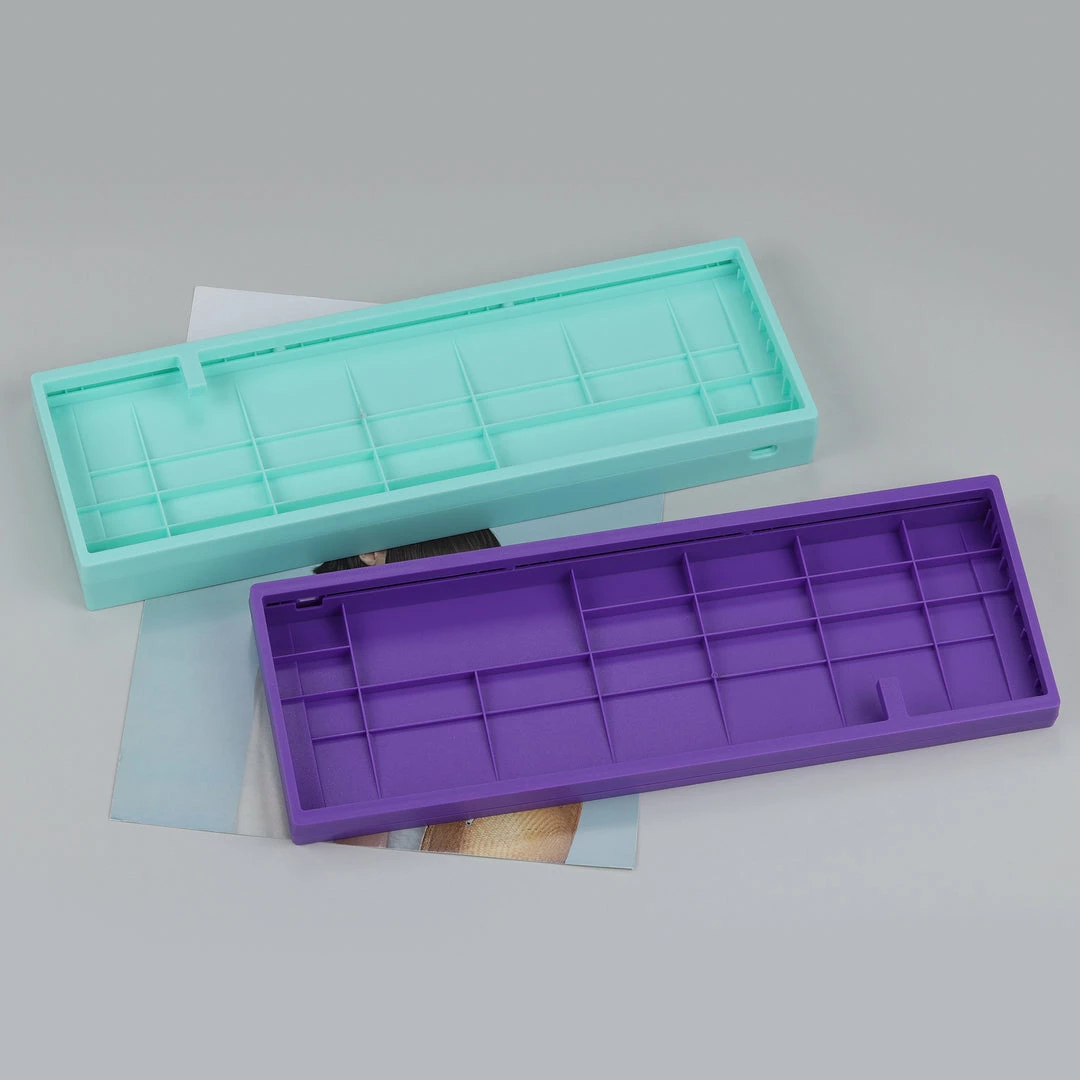

- Top and Bottom ABS plastic case
- Mute silicone
- Cherry screw-in stabilizers 60 set
- Wired version supports VIA;
- Bluetooth version supports TMK firmware, it already supports the VIA tool. Before using VIA, you need to replace the old file with a new bin file and load the Json file from VIA.YD67BLE.BIN YD67BLE_json_via.json
- Wired version supports Per-key RGB and Hot-swap; Bluetooth version does not support RGB effects
- Injection molding polycarbonate plate (No necessary to add stand-offs)
- USB-C supports MAC, Windows, Linux, etc.
- Compatible with MX and MX clone switches
- KBD67 Lite Acceptable Quality Standards: Click QC standard
- Made in China
- Typing angle: 6 degree
- Designed by KBDfans
Wired PCB Specs
Wired PCB Specs
- KBD67 MarK II Hot-swap PCB/ KBD67 MarK II RGB-ISO PCB
- Fixed layout
- Support Per-key RGB
- Based on QMK
- Support VIA
- Kailh hot-swap sockets
Wired PCB Flash Manual
- kbd67_markii rgb_v2_via.hex
- kbd67_markii rgb v3_via.bin kbd67markiirgb_v3.json (New Flash Manual)
- kbd67 markii ISO rgb via.bin (New Flash Manual)
Wireless PCB Specs
- Bluetooth 4.0 Dual-mode version
- Fixed layout
- No Per-key RGB, has an indicator on the caps lock key
- Based on TMK or VIA
- YD67BLE.BIN YD67BLE_json_via.json
- Update by ydkb.io
- Gateron hot-swap sockets
- KBD67 Lite Bluetooth Version Tutorial
Battery Specification
- NO BATTERY INCLUDED IN THE KIT, have to buy battery SEPARATELY
- Recommended battery Link (Right click and open in a new tab)
- Lithium polymer, 3.7V battery
- The connector is PH2.0
window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-c57cc02f-672a-4ea5-8af7-46874b39bc27’ })
Include
PCB x1
Case x1
Plate x1
Stabilizers 60 set x1
Mute silicone x1
Bottom foam x1
USB-C cable x1
KBD67 Lite Carrying case x1
KBDfans stabilizers foam stickers set x1
Rubber feet and Screws
Layout
window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-58a6ad78-25c9-438c-9798-c7c5d0045100’ })
window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-d9cfa591-311e-427c-b884-23d299b7f513’ })
Size and Typing angle
window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-e1542d24-e980-4d2a-908a-5b43a92562f1’ })
window.SHOGUN_IMAGE_ELEMENTS = window.SHOGUN_IMAGE_ELEMENTS || new Array();
window.SHOGUN_IMAGE_ELEMENTS.push({ hoverImage: ”, uuid: ‘s-6e7b9f3f-5441-4a45-acd1-aa9ff560acd6’ })

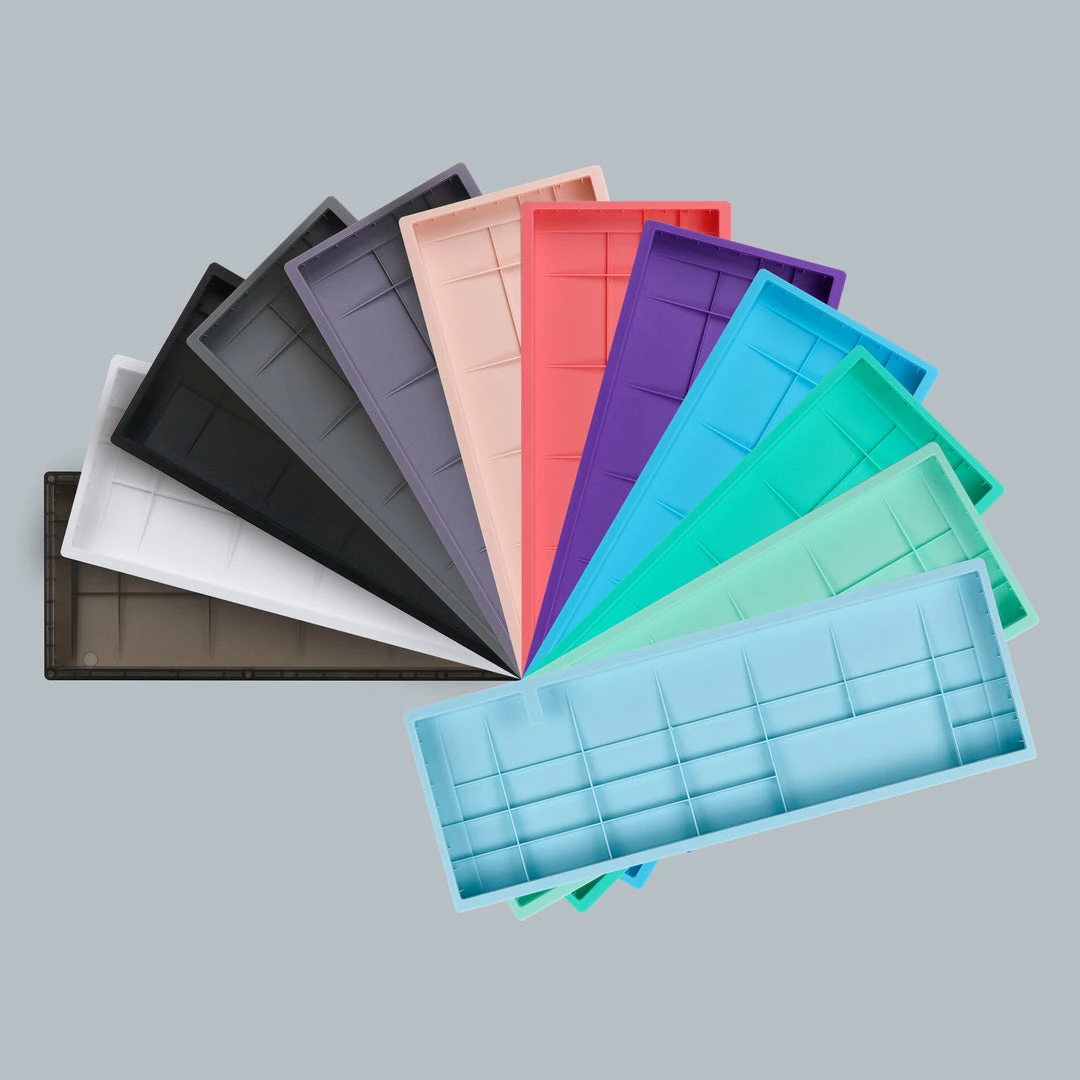

| Color | Black, White, Transparent, Flamingo Pink, Bonnie Cream, Rosy Brown, Steel Gray, Vivid Violet, Pale Turquoise, Justice Blue, Powder Blue, Mint Chip |
|---|---|
| PCB Version | Wired ANSI Layout, Wired ISO Layout, Wireless ANSI Layout |
