Sale!

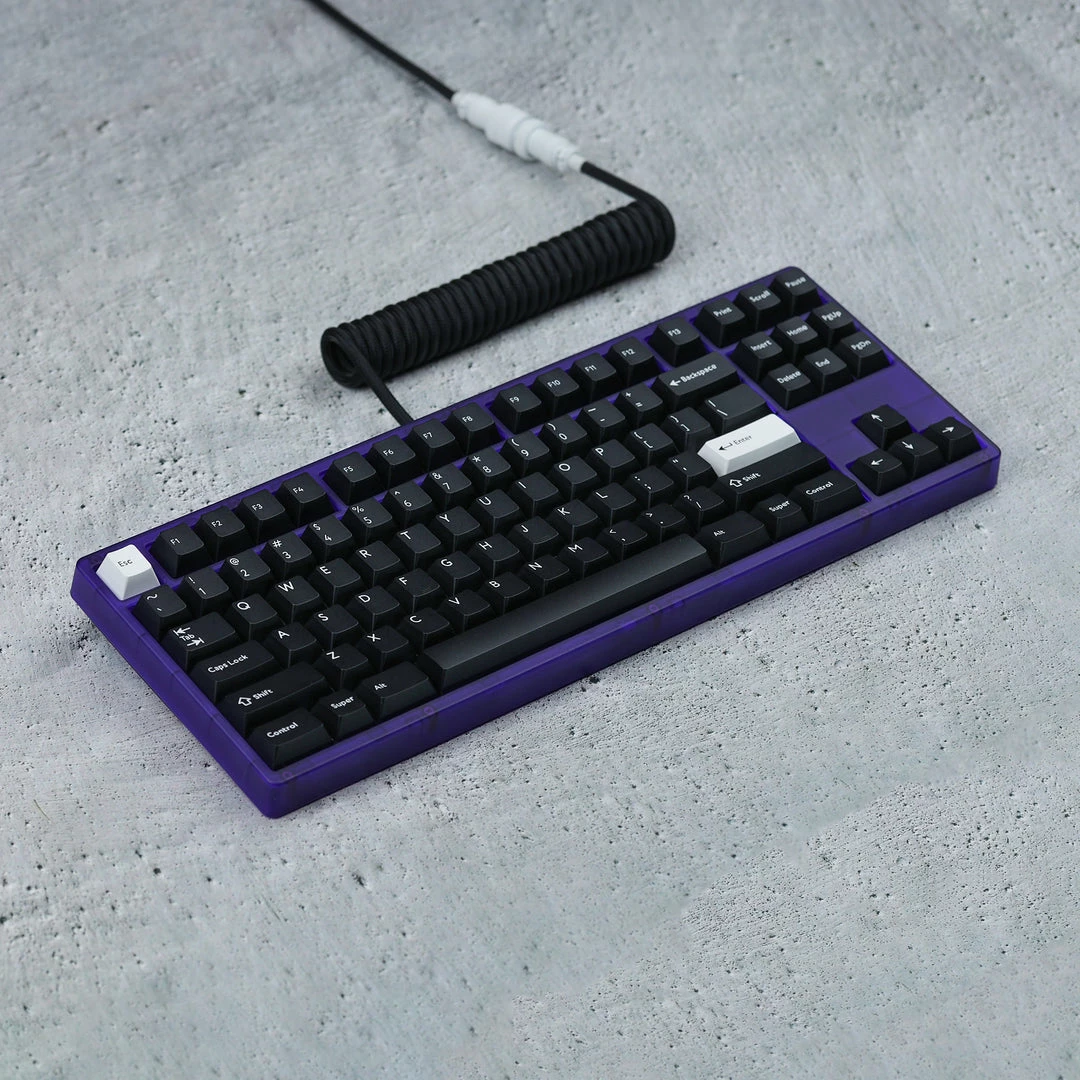

KBDfans Fully Assembled Tiger Lite Hot-swap Keyboard With PBTfans WOB Keycaps Shop

Original price was: $204.00.Current price is: $91.99.

Case

Keycaps

Clear

SKU: kbdfans-7060018495627 Categories: 80% keyboard, Assembled Keyboard, Keyboard Category, Ready To Use, Shop, Tiger Lite Tags: 80% fully assembled, Fully assembled keyboard, Install stab foam sticker, Ready to use, Spo-default, Spo-disabled, Spo-notify-me-disabled, Switch x90

Your happiness, our mission.
Streamlined service, designed for your convenience.
The quality solution for all your needs.
Safe and Secure Shopping

Specs

Layout: 80%
PCB: Hotswapable, Flex Cut, 1.2 mm thickness, RGB underglow, QMK firmware, USB-C interface
Case: Top and Bottom ABS plastic
Plate: Polycarbonate
Structure: Leaf spring mount
Typing angle: 7°
Compatibility: MX-type switches
keyboard Size: 358 x 134 x 31.9mm Front height 17.5mm
Tape Mod Size: 347 mm x 116 mm
Designer: Wei
Keycaps: PBTfans WOB – Base kit (PT04-1 )/ Simple Base (PT04-2)

Optional accessories& Note

KBDfans handmade custom mechanical keyboard Type-C Cable: Click
USB Daughter Board Connector Specification: SH1.0

Include

ABS Plastic Top and Bottom case x1
Polycarbonate plate x1
PCB x1
USB Daughter Board x1
PCB foam x1
Case foam x1
Switch pads x1
Silicone socks set x1
Designed tape mod x1
Cherry stabs kit x1
Stabilizer shims x1
Carrying case x1
USB-C cable x1 (Not the handmade cable from the picture)
Rubber feet x1
Keycaps set x1

Firmware

Flash Manual
kbdfans_tiger80_via.hex
tiger80.json
